CAB HERMES Q

Print-and-apply system in three widths, up to 300 mm/s, with touchscreen and a choice of applicators

  • Print technologyDirect thermal, Thermal transfer
  • Print width4"
  • Resolution203 / 300 / 600 dpi
Model
HERMES Q
Brand
CAB

The CAB HERMES Q prints labels and applies them automatically in production lines. Print widths 54-168 mm, 203, 300 or 600 dpi, up to 300 mm/s, optional UHF RFID.

On order

Delivered within one week of payment.

from 105 390 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresBrochure (EN) EN

Description

At a glance

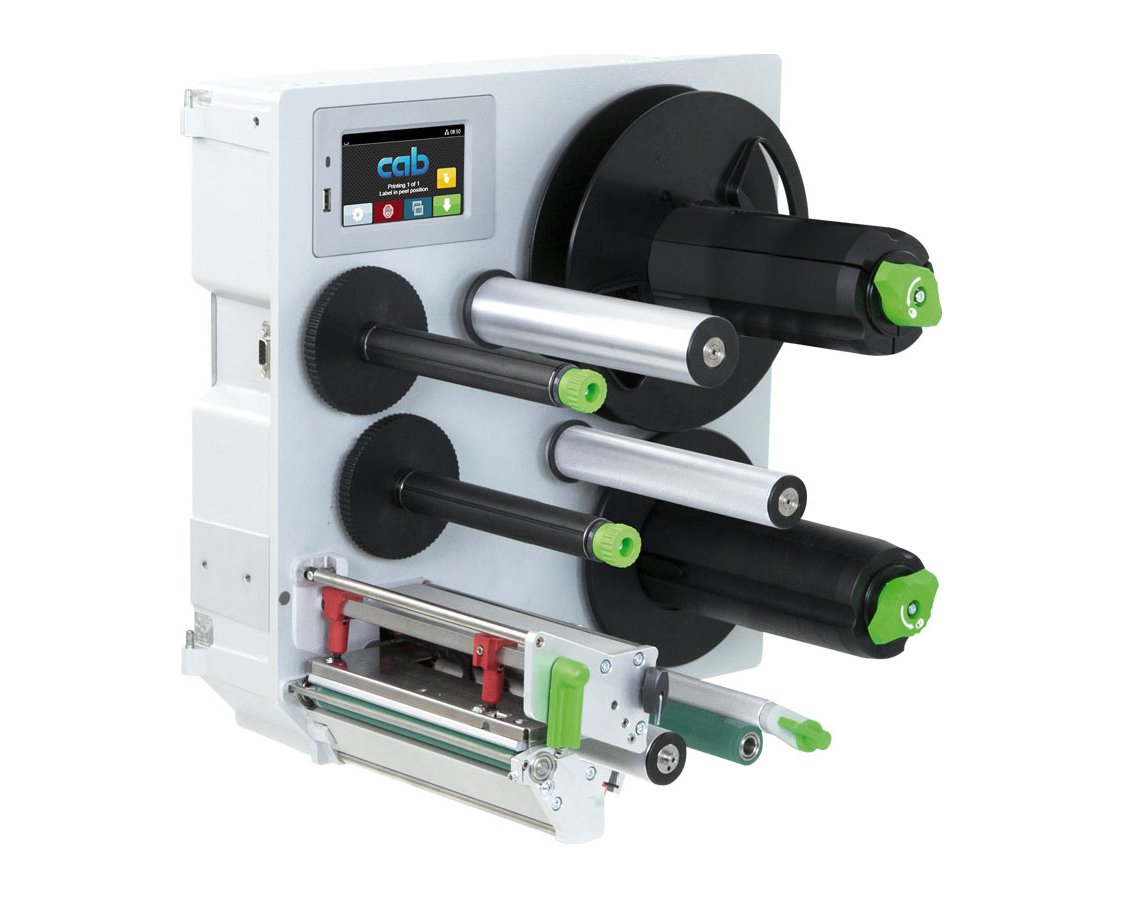

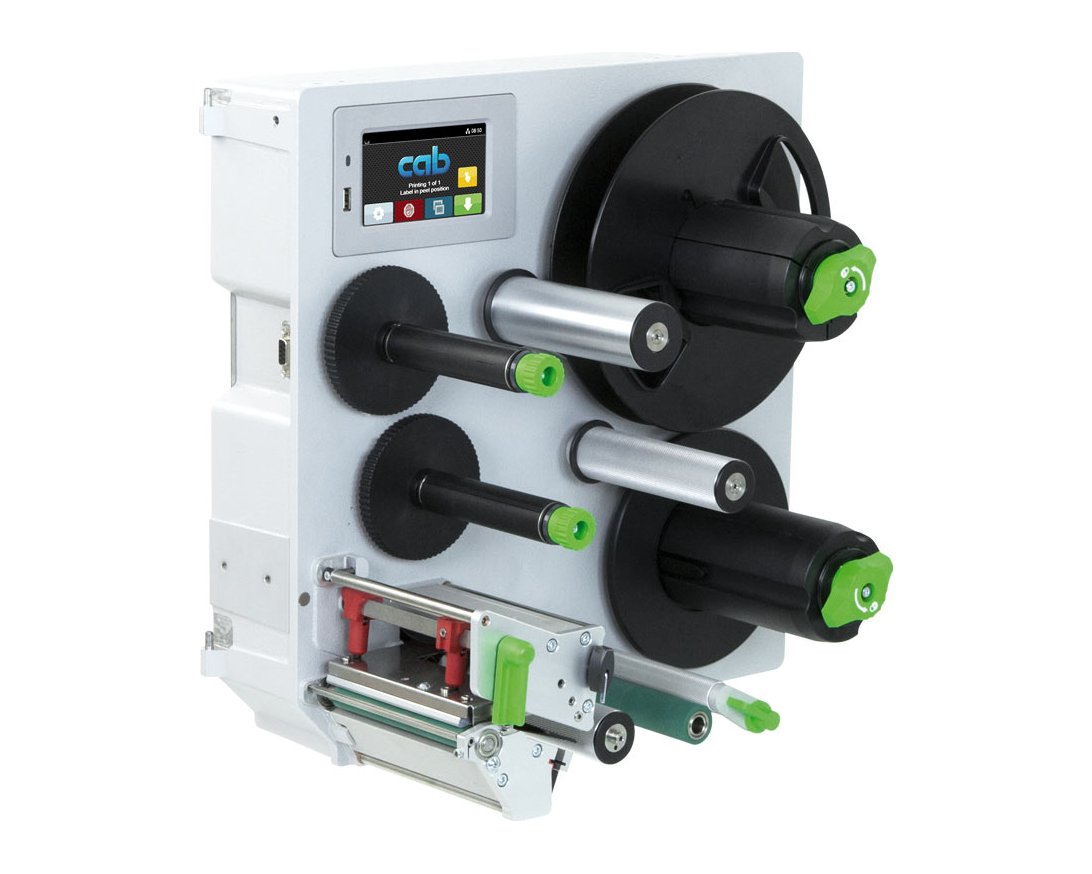

The CAB HERMES Q is a print-and-apply system that prints labels and applies them automatically in production, packaging, electronics and logistics lines. The successor of the HERMES+, it comes in three width families (Q2, Q4/Q4.3 and Q6.3), and the applicator is chosen to suit the product.

Key points

  • Print width 54.1-168 mm depending on the variant; 203, 300 or 600 dpi; speed up to 300 mm/s
  • Direct thermal and thermal transfer; rolls of 205 or 305 mm outer diameter, ribbon up to 600 m
  • 4.3" color touchscreen; JScript, ZPL II and abc Basic Compiler languages
  • USB, Ethernet and RS-232 as standard; Wi-Fi optional via a USB WLAN stick; RFID version or optional UHF RFID module on Q4.3, Q4 and Q6.3
  • Optional: left or right dispensing direction, automatic ribbon saving, HERMES/HQ applicators (stroke, front-side, vacuum belt, blow, flag), K40 unwinder, warning light, foot switch
  • Weight 15-20 kg, depending on roll and family

Specifications

Printing

Print technologyDirect thermal, Thermal transfer
Print width4"
Print width, mm54.1-168 mm (by variant)
Resolution203 / 300 / 600 dpi
Print speed300 mm/s
Maximum print length13500 mm

Rolls and ribbon

Maximum roll diameter205 / 305 mm
Roll core diameter76 mm
Ribbon (length, core, winding)up to 600 m, core 25.4 mm, width 25-67 / 25-114 / 50-170 mm

Platform

MemoryCPU 32-bit 800 MHz; 256 MB RAM; 50 MB Flash; SD slot: SDHC/SDXC up to 512 GB
Displaycolor LCD touchscreen 4.3" (272x480)
Command languagesJScript, ZPL II (datastream to be tested in advance), abc Basic Compiler

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, RS-232
RFID✓

Options

Options (cutter, peeler, rewinder)L or R dispensing direction; automatic ribbon saving; UHF RFID module; HERMES/HQ applicators (stroke, front-side, vacuum belt, blow, flag); label unwinder K40; warning light; foot switch

Dimensions

Dimensions (L × W × H)207/260/260/320 wide x 400-430 high x 400-500 deep (depends on roll 205/305)
Weight15-20 kg
