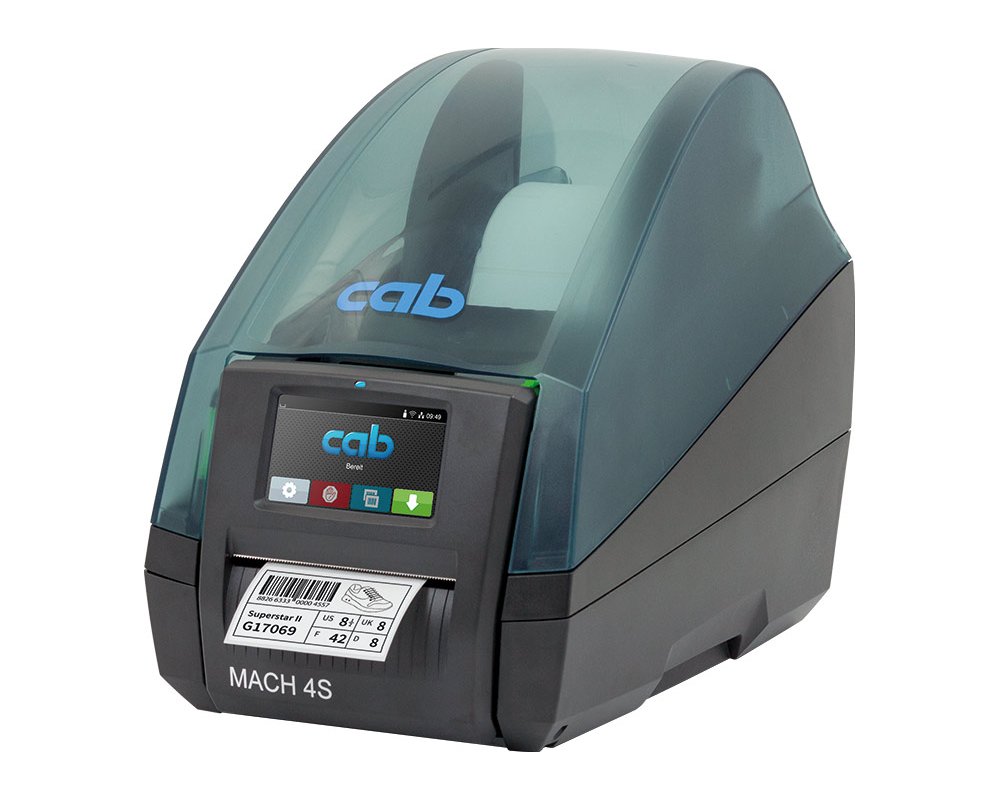

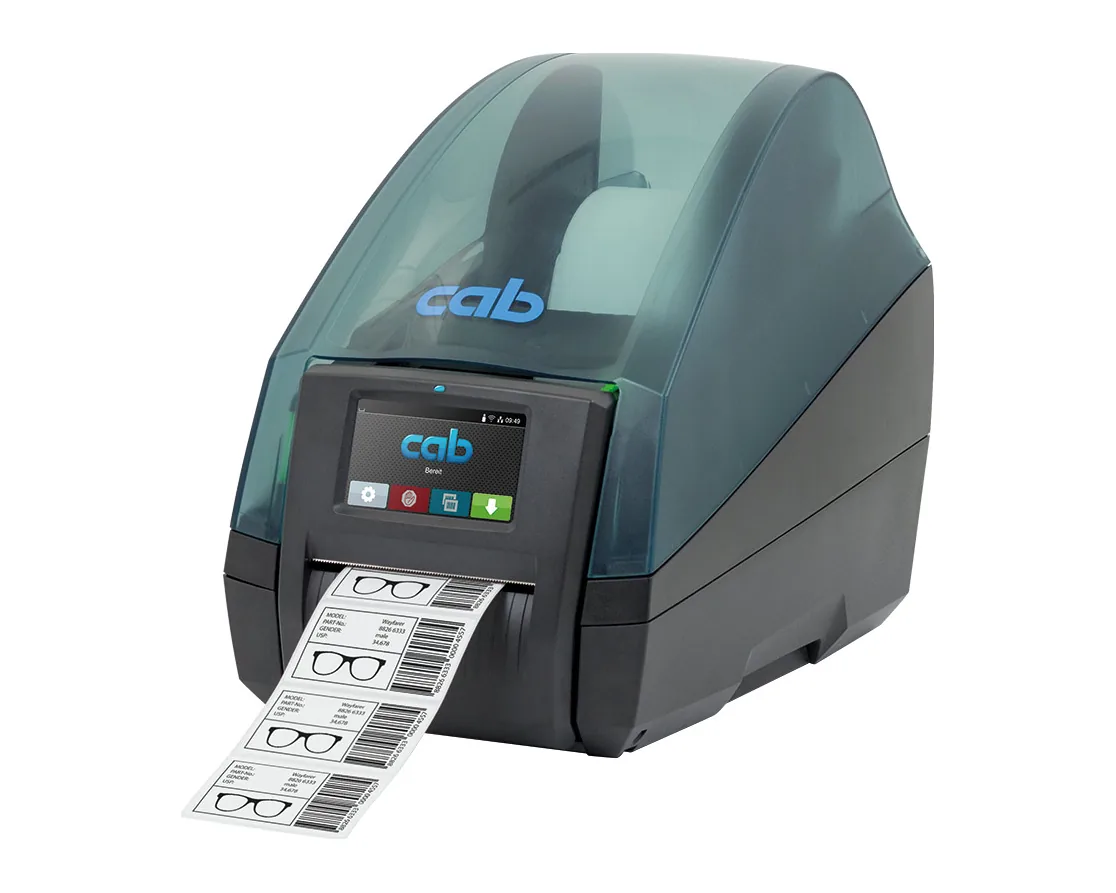

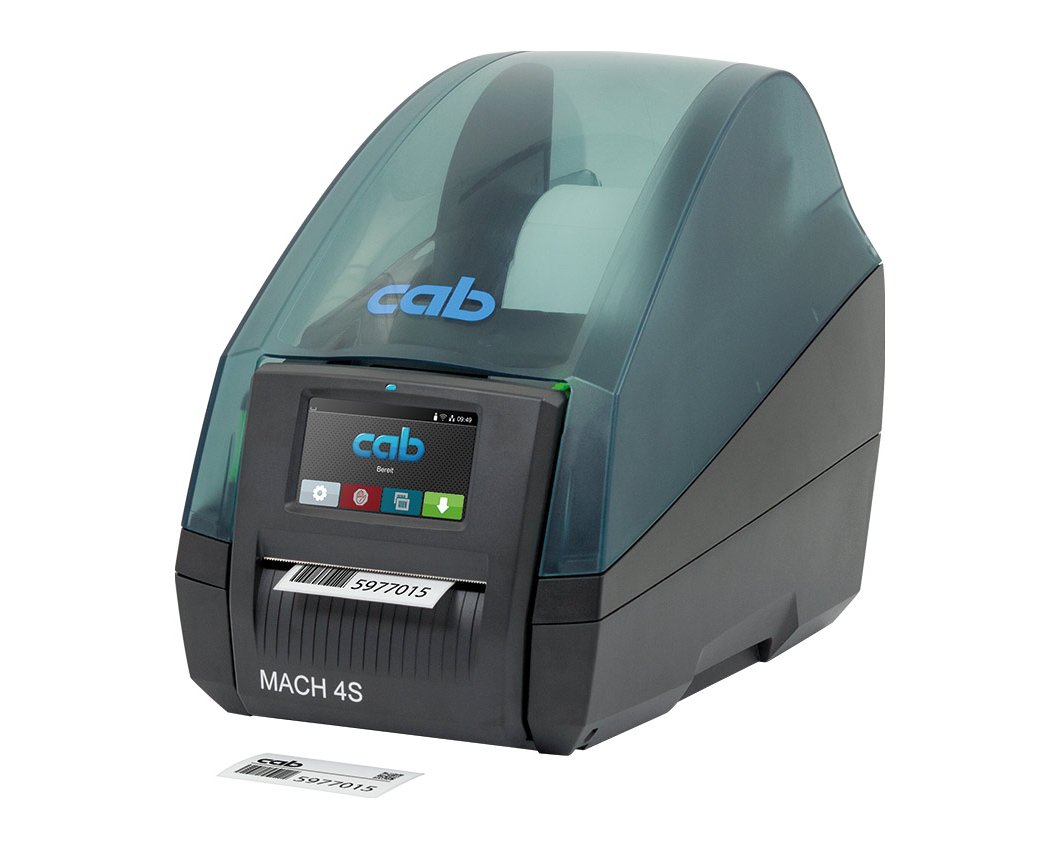

CAB MACH 4S

Compact 4-inch industrial printer with a centered material guide and front loading, up to 600 dpi

Print technologyDirect thermal, Thermal transfer
Print width4"
Resolution203 / 300 / 600 dpi

Model: MACH 4S
Brand: CAB

The CAB MACH 4S is a compact 4-inch industrial printer with 203, 300 or 600 dpi, up to 300 mm/s and a 4.3" touchscreen. For PCB labels, type plates and shipping labels.

On order

Delivered within one week of payment.

from 26 070 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresBrochure (EN) EN

Description

At a glance

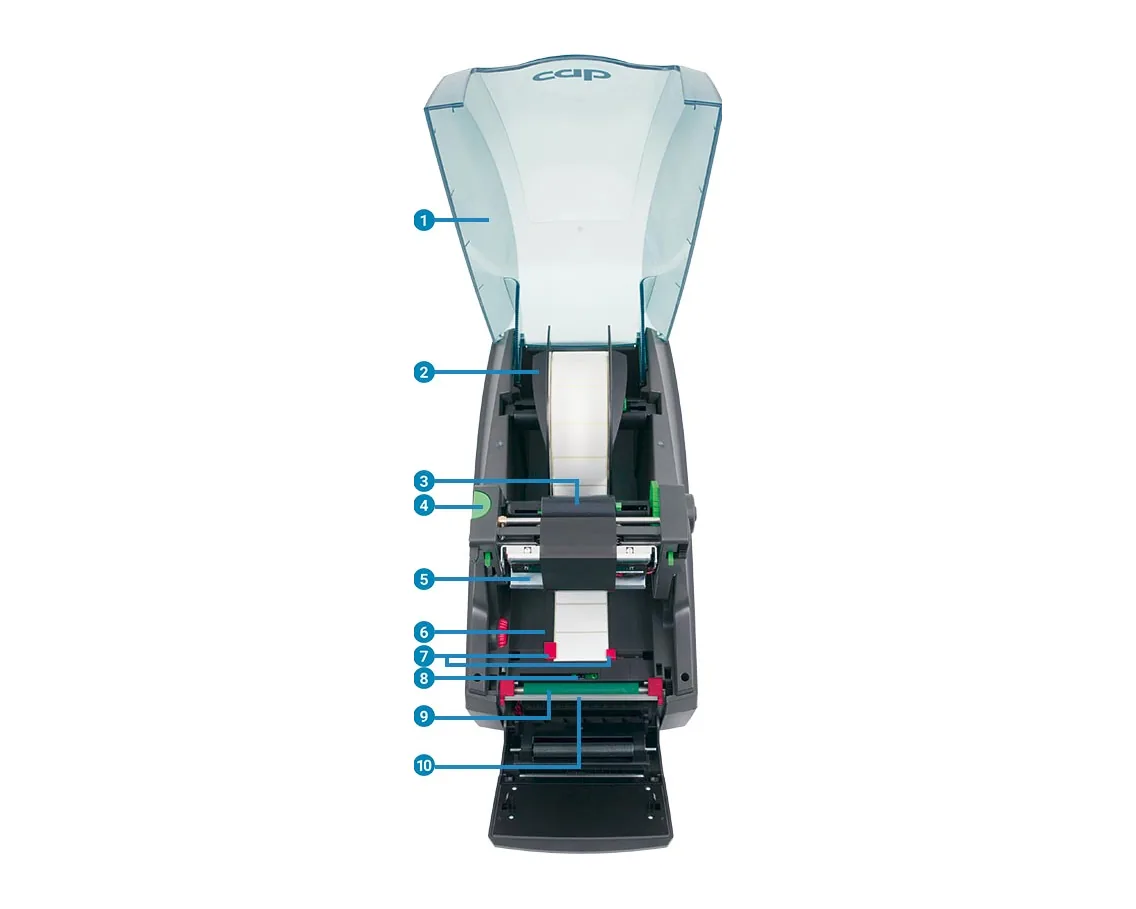

The CAB MACH 4S is a compact industrial printer with a centered material guide and front loading of labels and ribbon. It reaches 600 dpi, so small text and dense codes come out sharp. It is used for PCB labels, type plates, shipping and pallet labels.

Key points

Print width 104-108.4 mm; 203, 300 or 600 dpi; speed up to 300 mm/s (150 mm/s at 600 dpi)
Direct thermal and thermal transfer; maximum print length up to 13,500 mm
4.3" color touchscreen; 32-bit 800 MHz CPU, 256 MB RAM, SD slot up to 512 GB; JScript, ZPL II and abc Basic Compiler languages

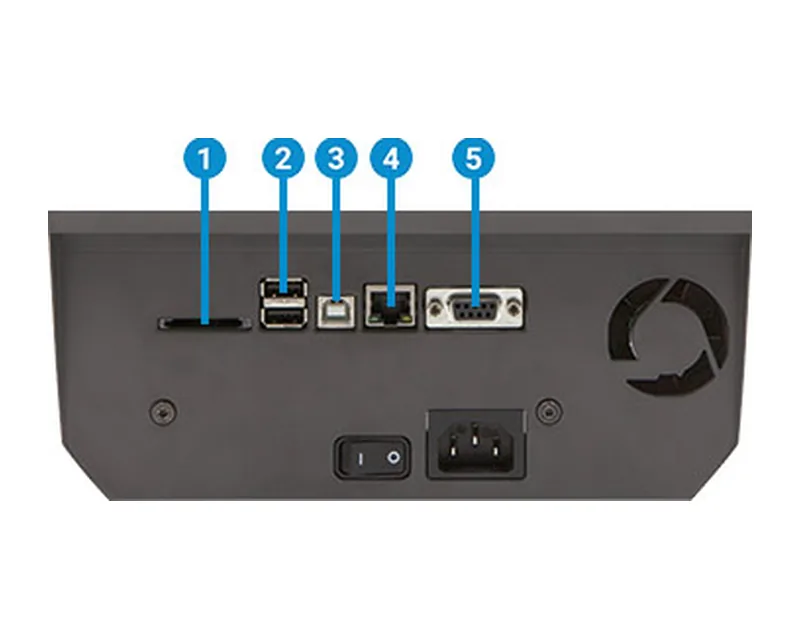

USB, Ethernet and RS-232 as standard; Wi-Fi optional via a USB WLAN stick
Three versions: B with tear-off edge, P with peel-off, C with cutter; optional external rewinder ER4/210, slim DR4-M print rollers, external panel, I/O box
Rolls up to 205 mm outer diameter; dimensions 240 x 317 x 435 mm, weight 6 kg

Specifications

Printing

Print technology	Direct thermal, Thermal transfer
Print width	4"
Print width, mm	104-108.4 mm (by variant)
Resolution	203 / 300 / 600 dpi
Print speed	300 mm/s
Maximum print length	13500 mm

Rolls and ribbon

Maximum roll diameter	205 mm
Roll core diameter	38.1-76 mm
Ribbon (length, core, winding)	up to 360 m, core 25.4 mm, width 25-114 mm

Platform

Memory	CPU 32-bit 800 MHz; 256 MB RAM; 50 MB Flash; SD slot: SDHC/SDXC up to 512 GB
Display	color LCD touchscreen 4.3" (272x480)
Command languages	JScript, ZPL II (datastream to be tested in advance), abc Basic Compiler

Connectivity and RFID

Connectivity	USB, Ethernet, Wi-Fi, RS-232
RFID	—

Options

Options (cutter, peeler, rewinder)	type B tear-off edge; type P peel-off; type C cutter; external rewinder ER4/210 (5540750); slim print rollers DR4-M25/M50/M80; roll/ribbon holders; USB WLAN stick; external operation panel; I/O box

Dimensions

Dimensions (L × W × H)	240x317x435 mm
Weight	6.0 kg

Compatible accessories

Accessories for this model. Price on request.

Cables and power supplies 2

RS232-C connecting cable, 3 m

Part number (P/N) 5550818

USB connecting cable, 1.8 m

Part number (P/N) 5907718.001

Other 14

External rewinder ER4/210

Part number (P/N) 5540750

Label selection I/O box

Part number (P/N) 5948205

SD memory card

Part number (P/N) 5977370

Print head 4.3/200 (MACH 4S, SQUIX 4.3)

Part number (P/N) 5977382.001

Print head 4.3/300 (MACH 4S, SQUIX 4.3)

Part number (P/N) 5977383.001

USB memory stick

Part number (P/N) 5977730

USB WLAN stick with rod antenna (2.4 + 5 GHz)

Part number (P/N) 5977731

USB WLAN stick (2.4 GHz)

Part number (P/N) 5978912.001

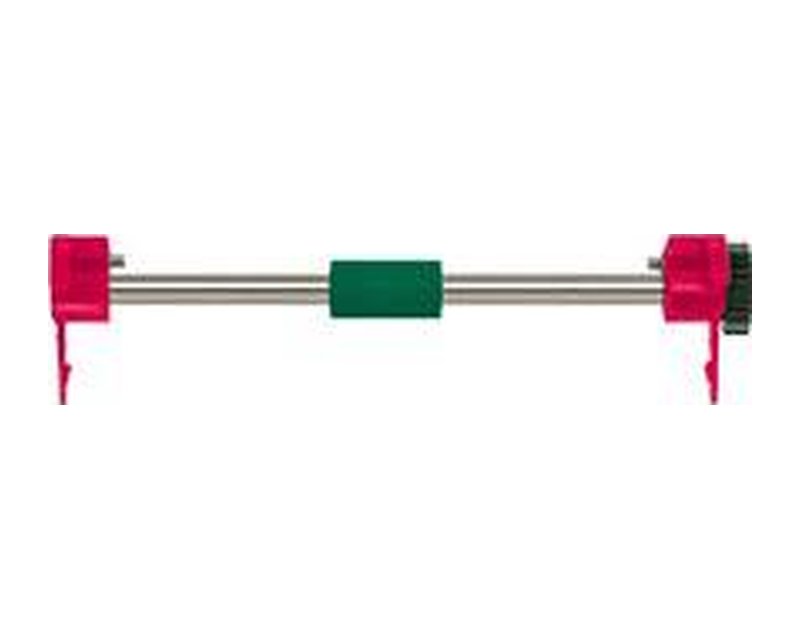

Print roller DR4-M25

Part number (P/N) 5984223.001

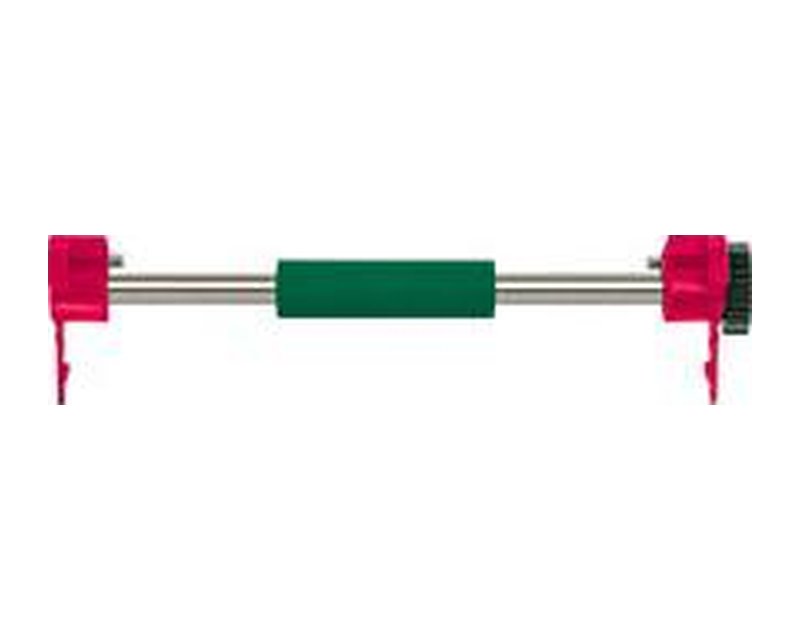

Print roller DR4-M50

Part number (P/N) 5984224.001

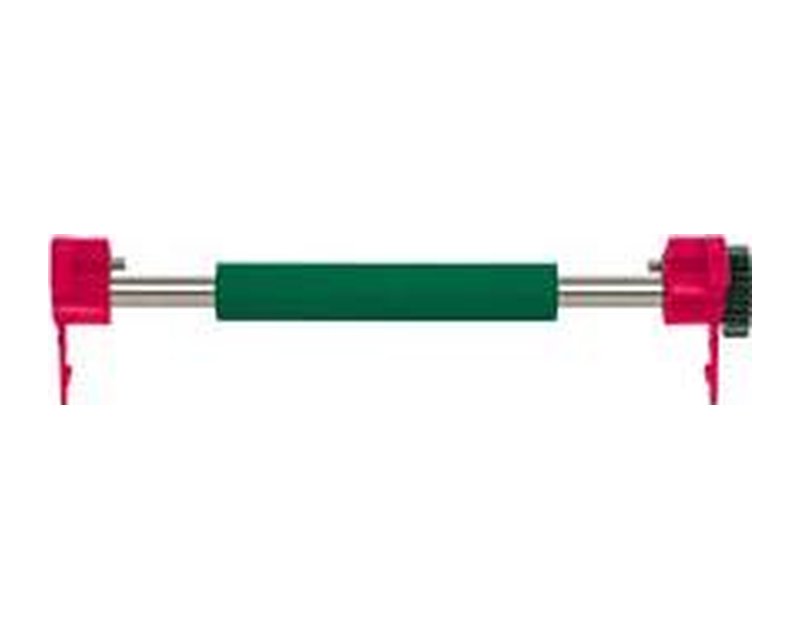

Print roller DR4-M80

Part number (P/N) 5984228.001

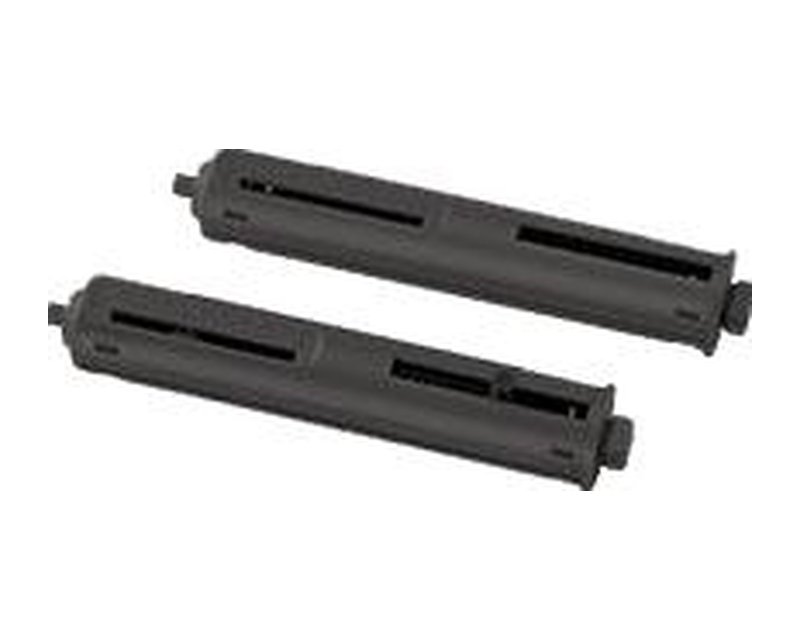

Ribbon holder for MACH 4S

Part number (P/N) 5984647.001

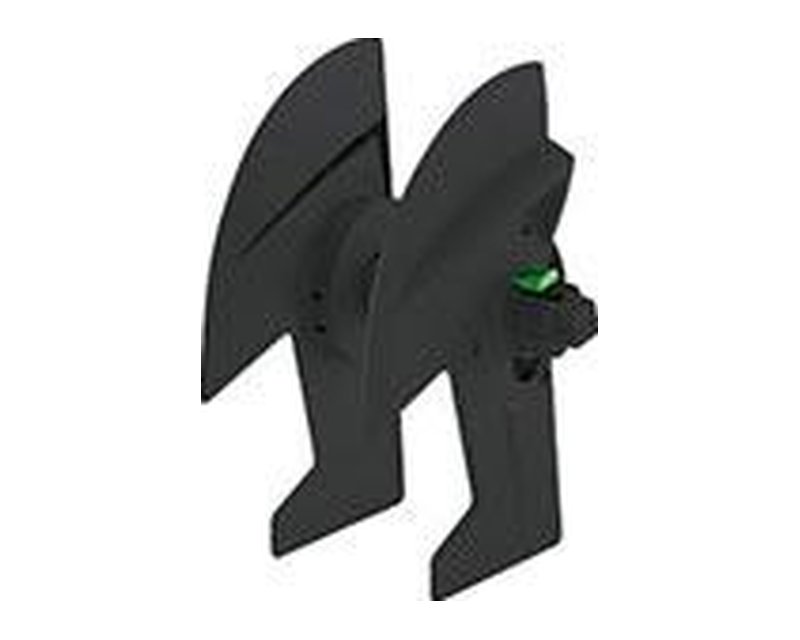

Roll holder for MACH 4S

Part number (P/N) 5984648.001

External operation panel

Part number (P/N) 6010186
