CAB XC Q - 1

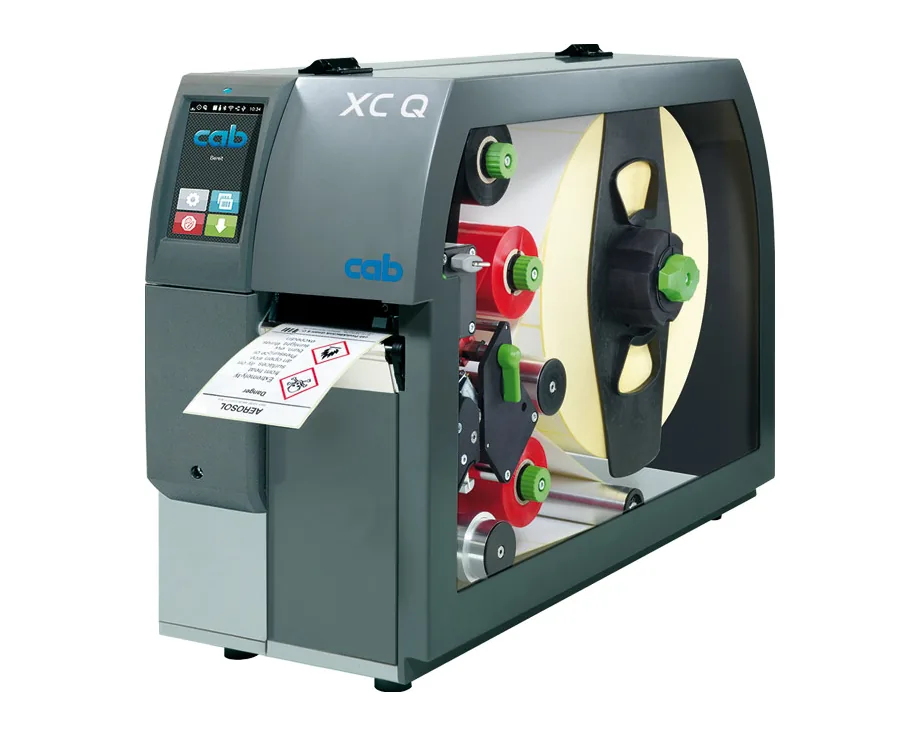

  • CAB XC Q - 1

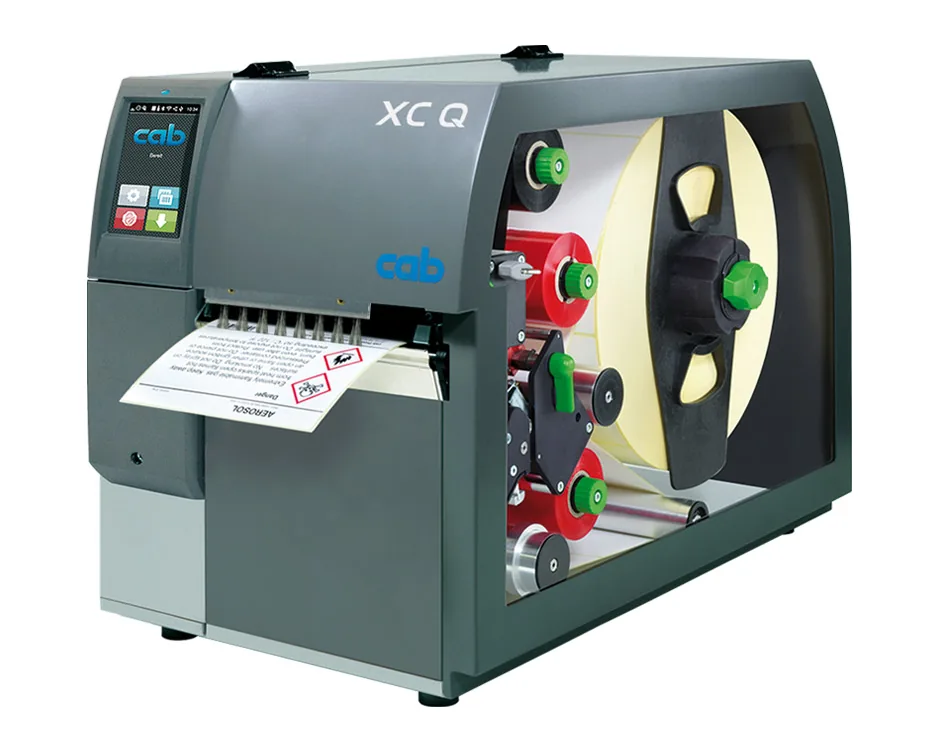

  • CAB XC Q - 2

CAB

CAB XC Q

Industrial two-colour thermal-transfer printer for GHS/CLP chemical labels

  • Print technologyThermal transfer
  • Print width4"
  • Resolution300 dpi
Model
XC Q
Brand
CAB

The CAB XC Q prints in two colours, black and red in one pass, at 300 dpi and 150 mm/s. Variants with 105.7 or 162.6 mm print width for GHS/CLP labelling of chemical products.

On order

Delivered within one week of payment.

175 380 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresBrochure (EN) EN

Description

At a glance

The CAB XC Q is an industrial thermal-transfer printer built for GHS/CLP labels: black and red are printed in a single pass, so hazard pictograms do not need pre-printed stock. It suits the chemical industry, barrels and drums, and laboratories. Q4 (105.7 mm) and Q6.3 (162.6 mm) variants are available.

Key points

  • Two-colour thermal transfer (black and red), 300 dpi, speed up to 150 mm/s
  • Print width 105.7 mm (Q4) or 162.6 mm (Q6.3); print length up to 3000 mm on Q4 and 2000 mm on Q6.3
  • Rolls up to 300 mm outer diameter; ribbon up to 450 m, core 25.4 mm
  • 4.3" colour touchscreen, USB, Ethernet and RS-232; Wi-Fi via an optional USB WLAN stick
  • Options: CU400 cutters, external rewinder ER4/300 or ER6/300, I/O interface plug

Specifications

Printing

Print technologyThermal transfer
Print width4"
Print width, mm105.7-162.6 mm (by variant)
Resolution300 dpi
Print speed150 mm/s
Maximum print length3000 mm

Rolls and ribbon

Maximum roll diameter300 mm
Roll core diameter38.1-76 (see datasheet) mm
Ribbon (length, core, winding)up to 450 m, core 25.4 mm, width up to 114 (Q4) / 170 (Q6.3) mm

Platform

MemoryCPU 32-bit 800 MHz; 256 MB RAM; 50 MB Flash; SD slot: SDHC/SDXC up to 512 GB
Displaycolor LCD touchscreen 4.3" (272x480)
Command languagesJScript, ZPL II (datastream to be tested in advance), abc Basic Compiler

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, RS-232
RFID—

Options

Options (cutter, peeler, rewinder)cutters CU400; external rewinder ER4/300 / ER6/300; USB WLAN stick; I/O interface plug; adapter kits XC Q4/Q6

Dimensions

Dimensions (L × W × H)248x395x554 (Q4) / 358x395x554 (Q6.3) mm
Weight22 (Q4) / 24 (Q6.3) kg
