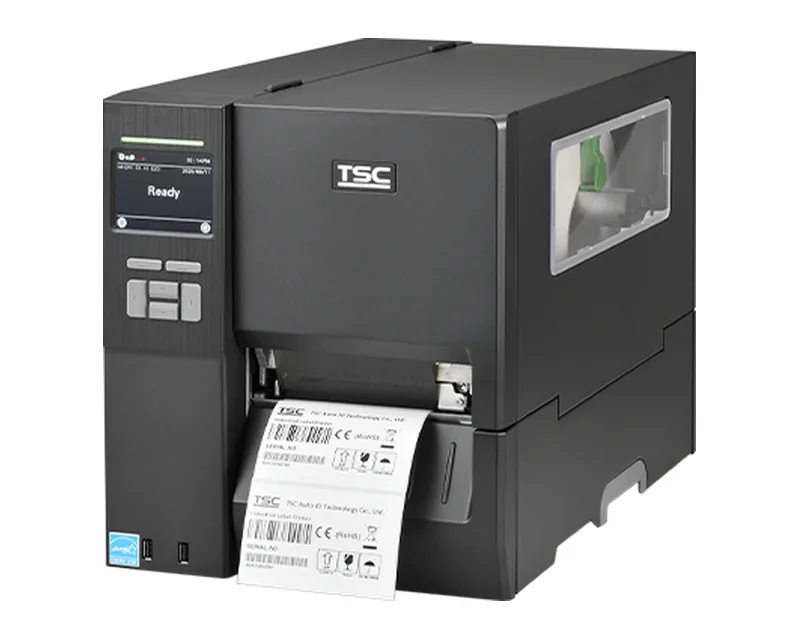

TSC MH341 - 1
  • TSC MH341 - 1

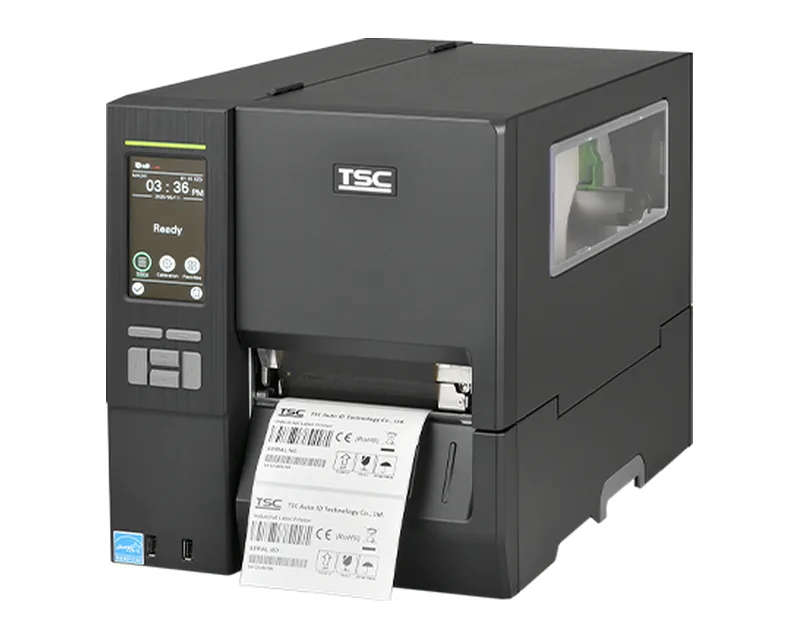

  • TSC MH341 - 2
  • TSC MH341 - 3

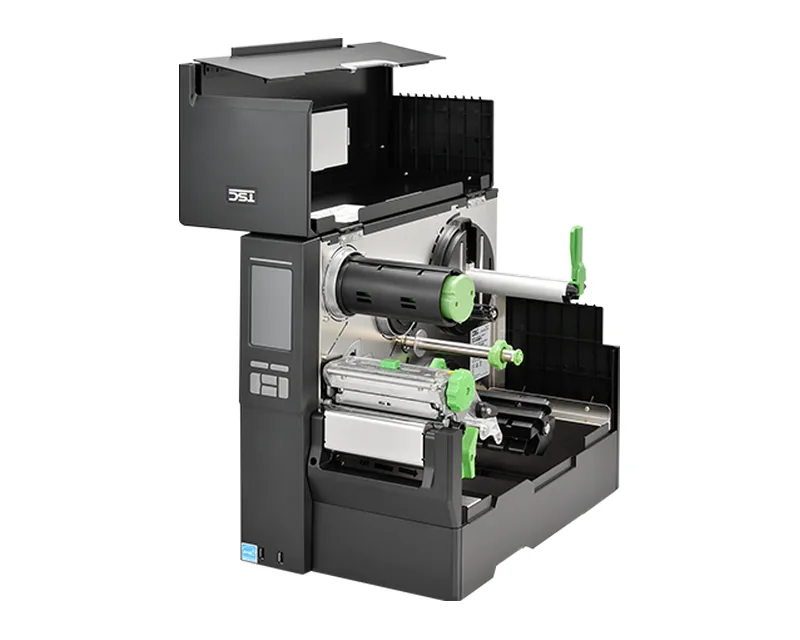

  • TSC MH341 - 4
  • TSC MH341 - 5
  • TSC MH341 - 6

TSC

TSC MH341

Flagship 4-inch industrial printer, 300 dpi, speed up to 305 mm/s

  • Print technologyDirect thermal, Thermal transfer
  • Print width4"
  • Resolution300 dpi
Model
MH341
Brand
TSC

The TSC MH341 is a flagship industrial printer with a 104 mm print width, 300 dpi and rolls up to 8 inches. T (touchscreen) and P (internal rewinder) versions round out the range; full interface set.

On order

Delivered within one week of payment.

from 48 630 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet (EN) EN

Description

At a glance

The TSC MH341 is the top model of the MH family in the 4-inch format, with a premium printhead, a fast processor and support for 8-inch rolls. It suits warehouses and shipping centres, logistics and manufacturing, where a printer runs long shifts. The touchscreen (T) and internal rewinder (P) come as versions, and 300 dpi fits for small text and denser barcodes.

Key points

  • 104 mm (4") print width, 300 dpi, speed up to 305 mm/s
  • Rolls up to 203.2 mm outer diameter; 600 m ribbon, 25.4-114.3 mm wide
  • USB, Ethernet, Wi-Fi, Bluetooth, RS-232 and parallel; colour LCD, with a touchscreen on the T version
  • Media: continuous, die-cut, black-mark (top or bottom), fan-fold, notch, perforated, tag and care-label, 20-114 mm wide; TSPL-EZD language with TSPL emulation
  • Optional cutter (regular, heavy-duty or care-label), peeler and rewinder

Specifications

Printing

Print technologyDirect thermal, Thermal transfer
Print width4"
Print width, mm104 mm (4.09")
Resolution300 dpi
Print speed305 mm/s
Maximum print length11430 mm

Rolls and ribbon

Maximum roll diameter203.2 mm
Roll core diameter1" / 3" (25.4 / 76.2 mm)
Ribbon (length, core, winding)600 Meters, width 1" - 4.5" (25.4 - 114.3 mm)

Platform

Memory256 MB SDRAM; 512 MB Flash; microSD card reader; up to 32 GB
DisplayColor LCD with buttons; Color LCD touchscreen with buttons
Command languagesTSPL-EZD; emulation: TSPL

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, Bluetooth, RS-232, Parallel
RFID—

Options

Options (cutter, peeler, rewinder)cutter, peeler, rewinder

Dimensions

Dimensions (L × W × H)276 x 326 x 502 mm
Weight15.6 (T: 15.7; P: 18.9, 276 x 412 x 502) kg

Compatible accessories

Accessories for this model. Price on request.

Cables and power supplies 1

Other 5

Documents
