CAB EOS5 - 1
  • CAB EOS5 - 1
  • CAB EOS5 - 2

CAB

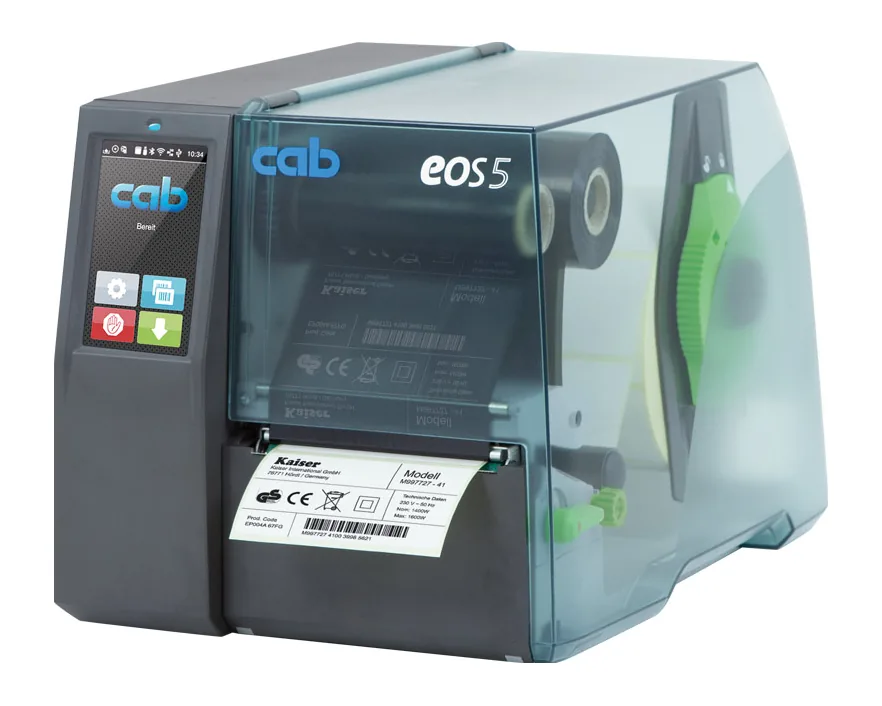

CAB EOS5

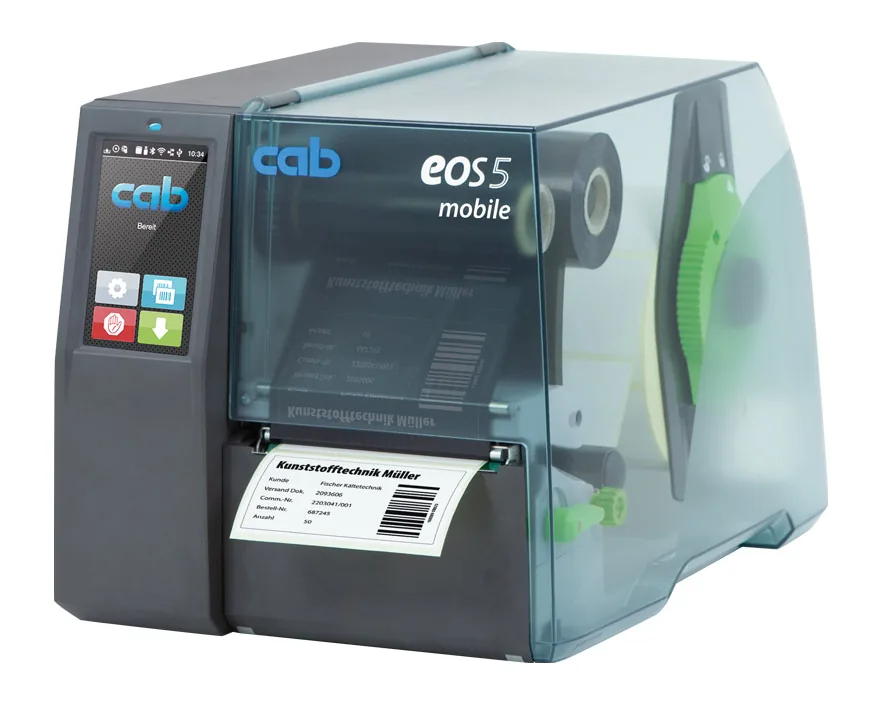

4-inch desktop printer with touchscreen for large rolls up to 203 mm and a battery-powered mobile version

  • Print technologyDirect thermal, Thermal transfer
  • Print width4"
  • Resolution203 / 300 dpi
Model
EOS5
Brand
CAB

The CAB EOS5 is a 4-inch desktop printer for rolls up to 203 mm, with a 4.3" touchscreen, 203 or 300 dpi and 150 mm/s. A battery-powered mobile version is available.

On order

Delivered within one week of payment.

from 19 560 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresBrochure (EN) EN

Description

At a glance

The CAB EOS5 shares the electronics and print width of the EOS2 but takes large rolls up to 203 mm outer diameter, so rolls are changed less often. The color touchscreen keeps operation simple. It suits production, logistics, retail and healthcare, and the mobile version runs on a battery.

Key points

  • Print width 105.7-108 mm, 203 dpi (EOS5/200) or 300 dpi (EOS5/300), 150 mm/s
  • Rolls up to 203 mm outer diameter, core 38.1-76 mm; ribbon up to 360 m
  • 4.3" color touchscreen; 32-bit 800 MHz CPU, 256 MB RAM, SD slot up to 512 GB
  • USB, Ethernet and RS-232 as standard; Wi-Fi optional via a USB WLAN stick; JScript, ZPL II and abc Basic Compiler languages

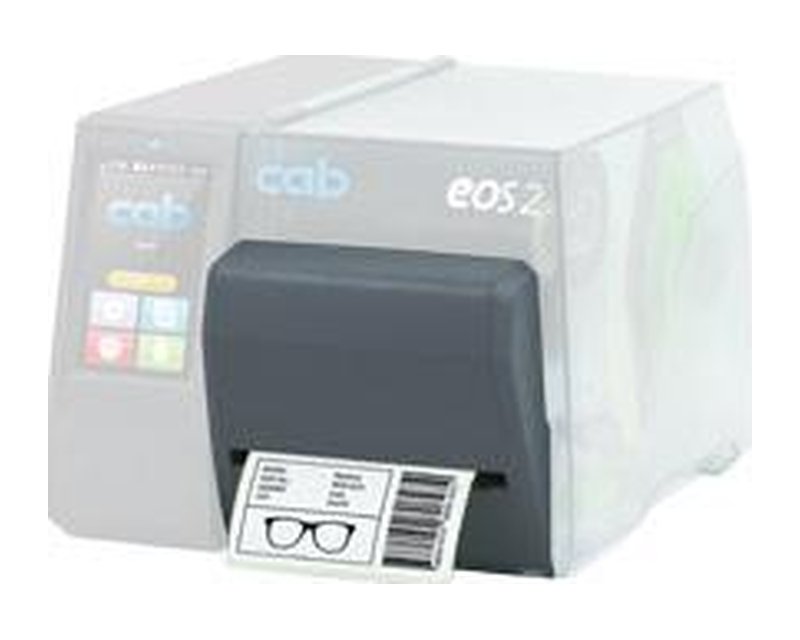

  • Options: cutter, cutter with perforation, external unwinder up to 390 mm, fanfold brake, battery pack for the mobile version, external panel, I/O box
  • Dimensions 264 x 247 x 412 mm, weight 5 kg

Specifications

Printing

Print technologyDirect thermal, Thermal transfer
Print width4"
Print width, mm105.7-108 mm (by variant)
Resolution203 / 300 dpi
Print speed150 mm/s
Maximum print length13500 mm

Rolls and ribbon

Maximum roll diameter203 mm
Roll core diameter38.1-76 mm
Ribbon (length, core, winding)up to 360 m, core 25.4 mm, width 25-114 mm

Platform

MemoryCPU 32-bit 800 MHz; 256 MB RAM; 50 MB Flash; SD slot: SDHC/SDXC up to 512 GB
Displaycolor LCD touchscreen 4.3" (272x480)
Command languagesJScript, ZPL II (datastream to be tested in advance), abc Basic Compiler

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, RS-232
RFID—

Options

Options (cutter, peeler, rewinder)cutter (5966730); cutter + perforation cutter (5969891); external unwinder up to 390 mm (5965586); fanfold brake (5953753); battery pack 2 for mobile version (5542660); USB WLAN stick; external operation panel; I/O box

Dimensions

Dimensions (L × W × H)264x247x412 mm
Weight5.0 kg

Compatible accessories

Accessories for this model. Price on request.

Batteries 1

Cables and power supplies 2

Other 11

Documents

Video reviews

The video loads from YouTube after you click it; until then the site does not contact YouTube.
