TSC

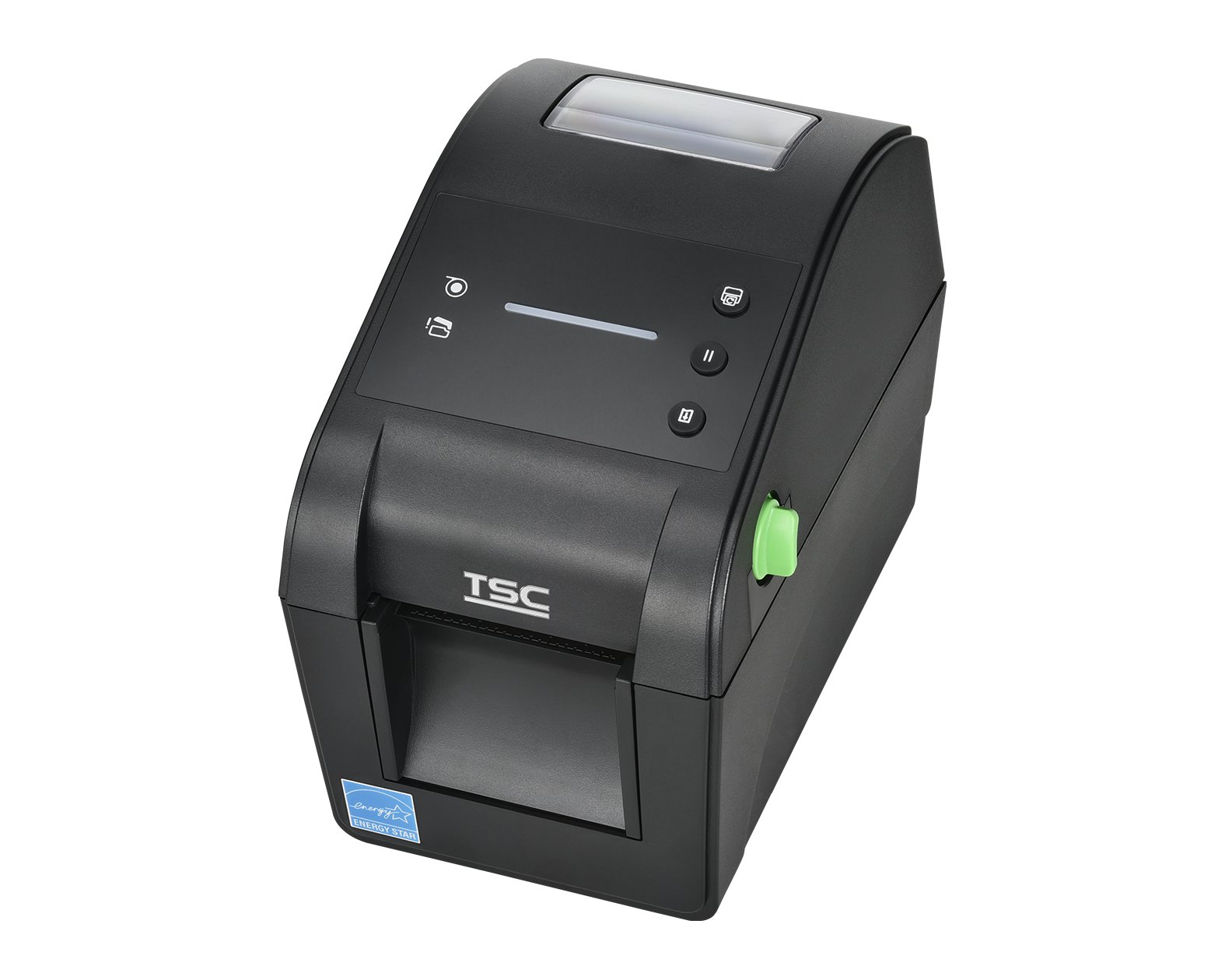

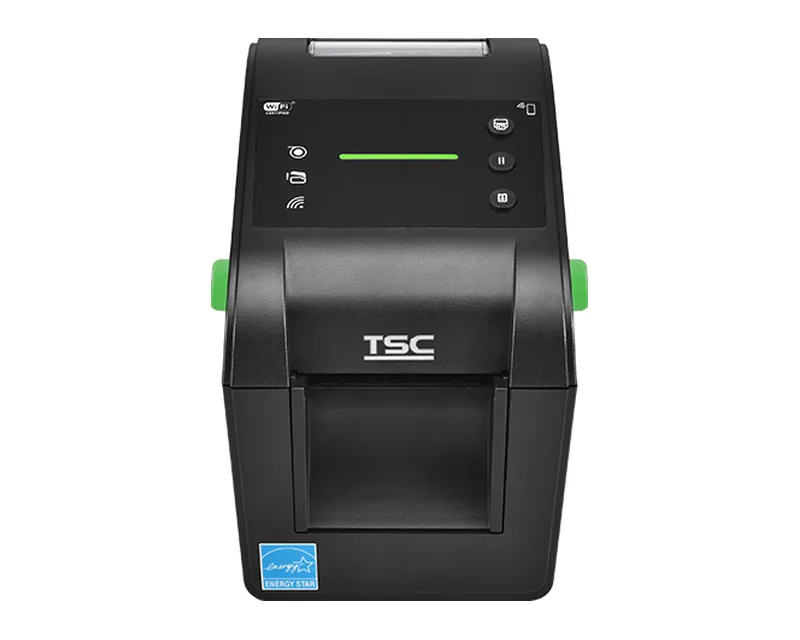

TSC DH220

Compact 2-inch direct-thermal desktop printer with upgradable modules, optional cutter and peeler

  • Print technologyDirect thermal
  • Print width2"
  • Resolution203 dpi
Model
DH220
Brand
TSC

The TSC DH220 is a compact 2-inch direct-thermal desktop printer: 54 mm print width, 203 dpi, 203 mm/s, Ethernet, Wi-Fi, Bluetooth, RS-232 and USB. For medication, specimen, take-out and ticket labels.

On order

Delivered within one week of payment.

from 7 960 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet (EN) EN

Description

At a glance

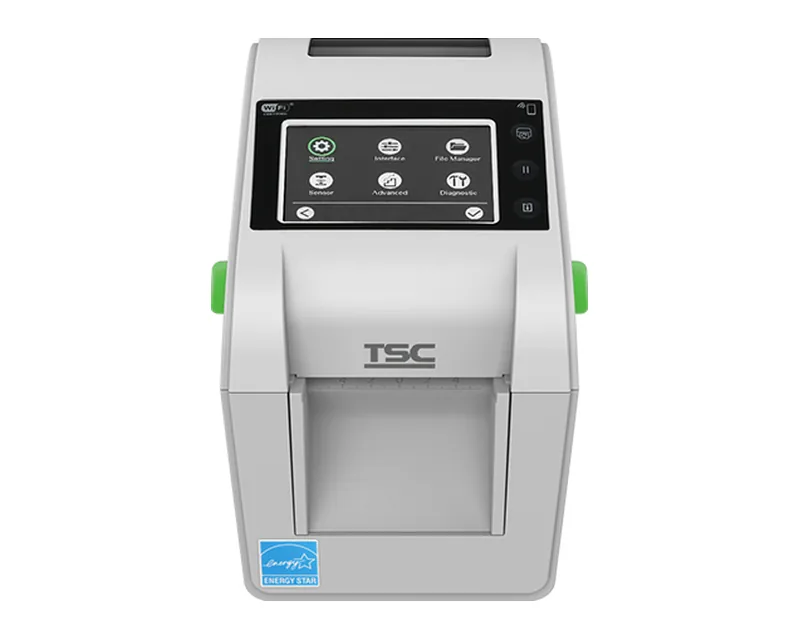

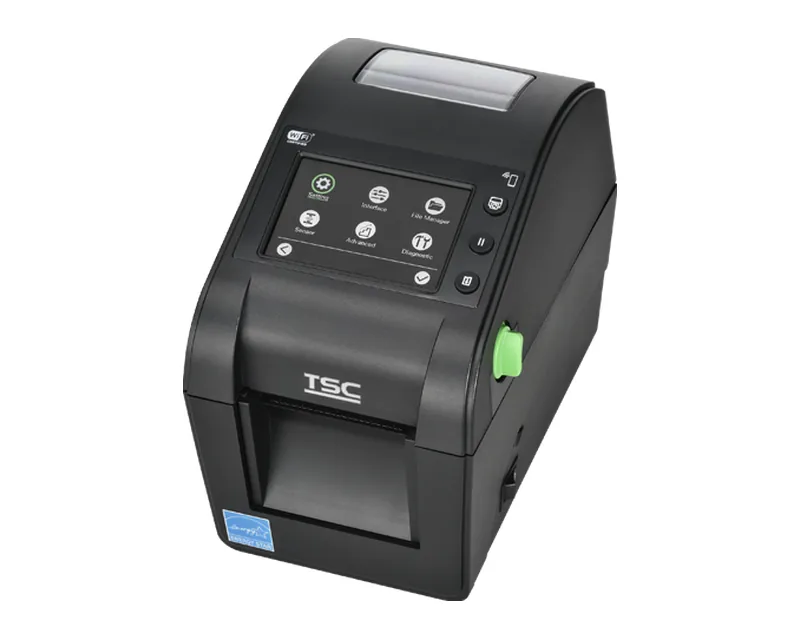

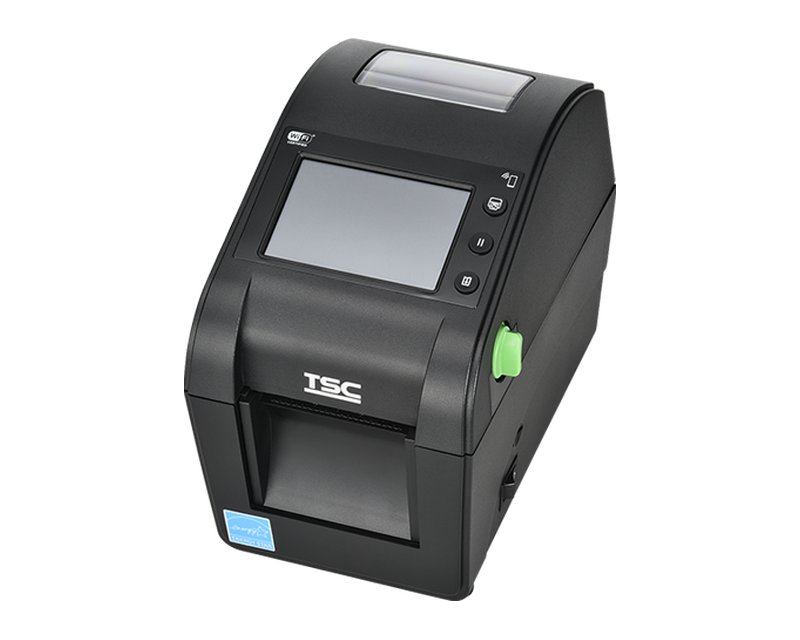

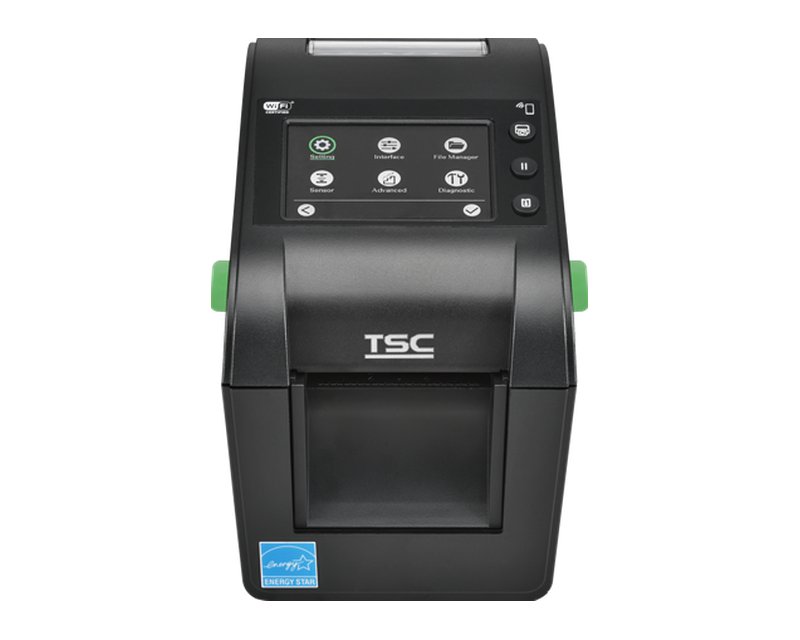

The TSC DH220 is a 2-inch desktop printer that takes up little space and grows with modules: cutter, peeler and a linerless option. It suits medication and specimen labels, take-out orders, tickets and shipping. DH220T and DH220THC versions with a colour touchscreen are also available.

Key points

  • Direct thermal, 54 mm print width, 203 dpi, speed up to 203 mm/s
  • USB, USB Host, Ethernet, Wi-Fi, Bluetooth (including MFi) and RS-232; microSD slot up to 512 GB

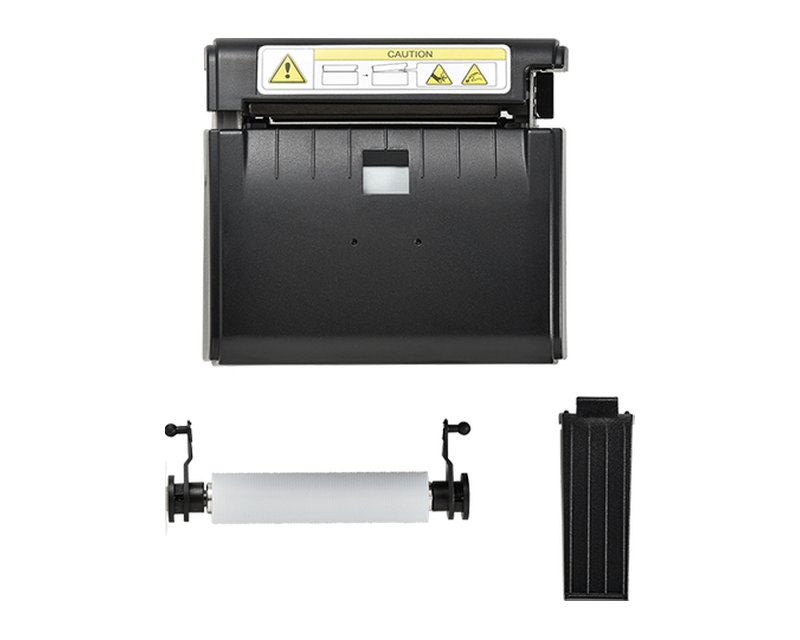

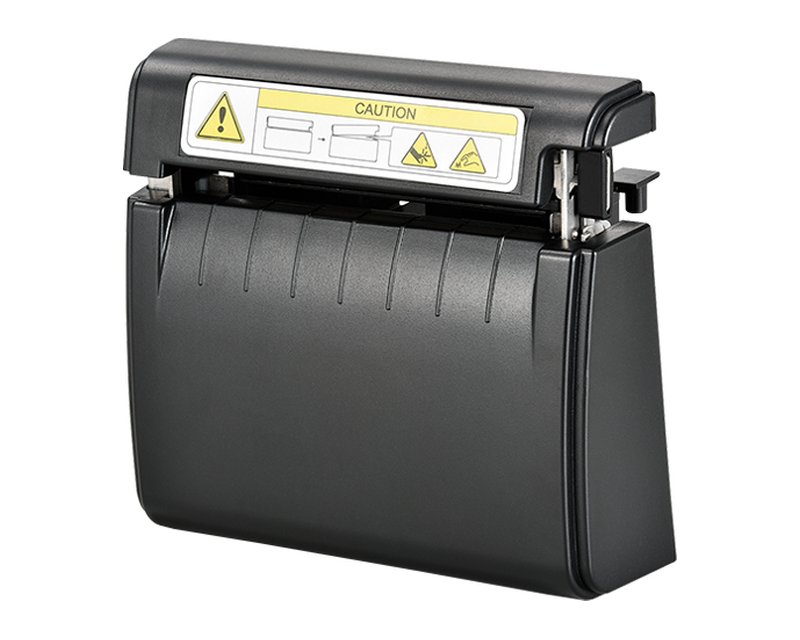

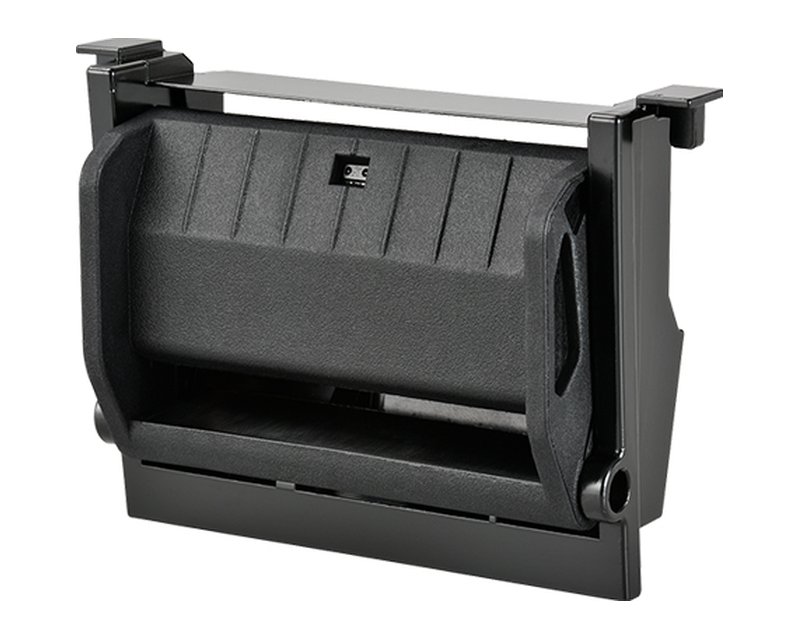

  • Optional guillotine cutter (full or partial cut) and peeler; linerless option
  • Rolls up to 127 mm, core 25.4-38.1 mm; media 15-60 mm wide; print length up to 25,400 mm
  • LED with buttons or colour touchscreen (DH220T/DH220THC); TSPL-EZD; 1.6 kg, 138 x 172 x 210 mm

Specifications

Printing

Print technologyDirect thermal
Print width2"
Print width, mm54 mm (2.13")
Resolution203 dpi
Print speed203 mm/s
Maximum print length25400 mm

Rolls and ribbon

Maximum roll diameter127 mm
Roll core diameter1" - 1.5" (25.4 - 38.1mm)

Platform

Memory128 MB SDRAM; 128 MB Flash; microSD card reader; up to 512 GB
DisplayLED with buttons; Color LCD touchscreen with buttons
Command languagesTSPL-EZD; emulation: TSPL

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, Bluetooth, RS-232
RFID—

Options

Options (cutter, peeler, rewinder)cutter, peeler

Dimensions

Dimensions (L × W × H)138 x 172 x 210 mm
Weight1.6 kg

Compatible accessories

Accessories for this model. Price on request.
