TSC

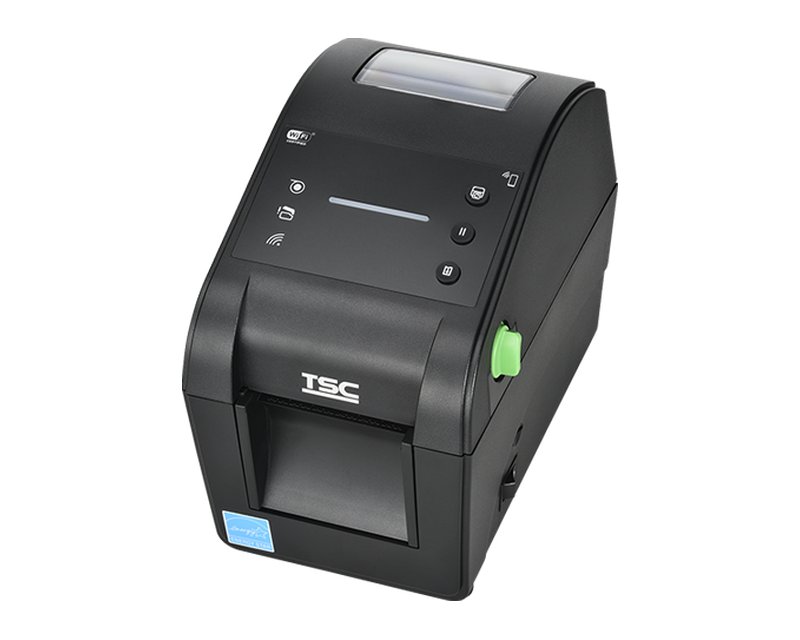

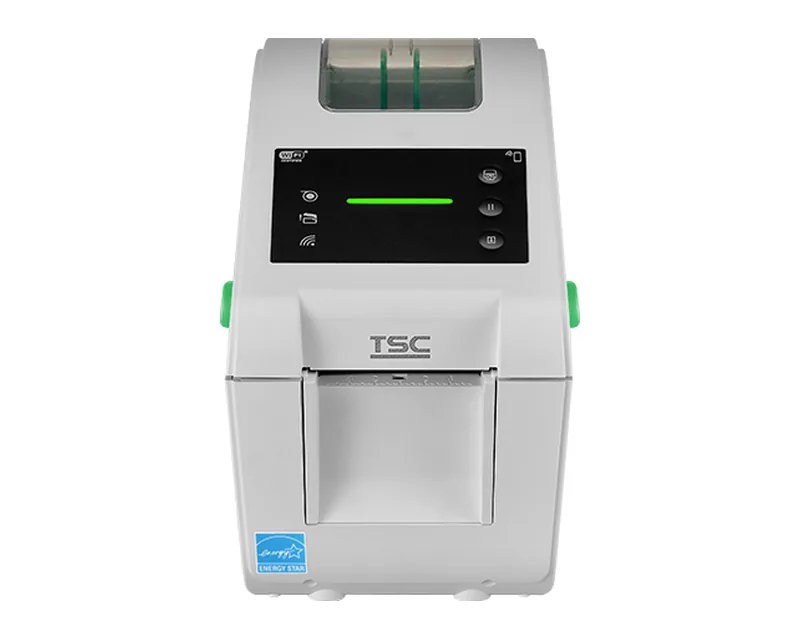

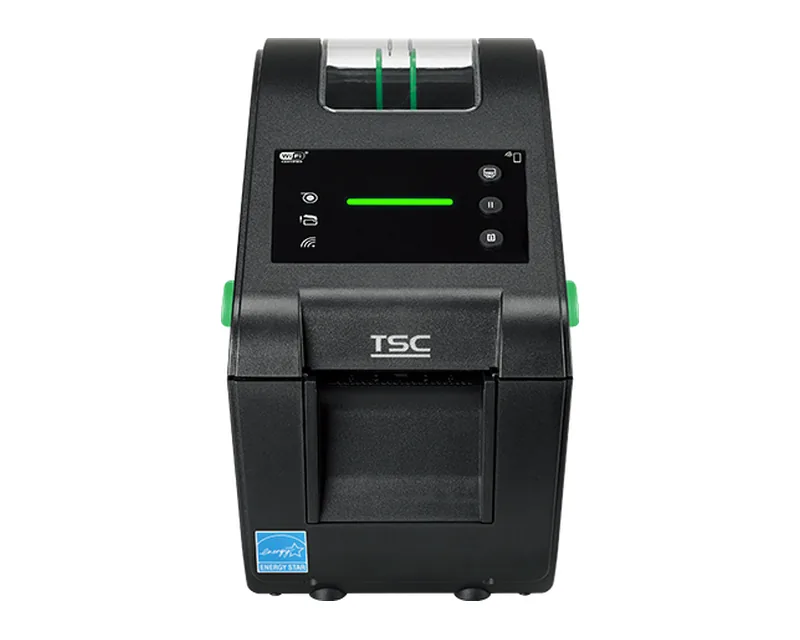

TSC DH220L

2-inch desktop printer with a large 6.5-inch roll for high-volume wristbands and tickets

  • Print technologyDirect thermal
  • Print width2"
  • Resolution203 dpi
Model
DH220L
Brand
TSC

The TSC DH220L is the 2-inch DH model with a roll up to 165 mm, for high-volume wristbands and tickets: 54 mm print width, 203 dpi, 203 mm/s, Ethernet, Wi-Fi, Bluetooth and USB.

On order

Delivered within one week of payment.

Price on request

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet (EN) EN

Description

At a glance

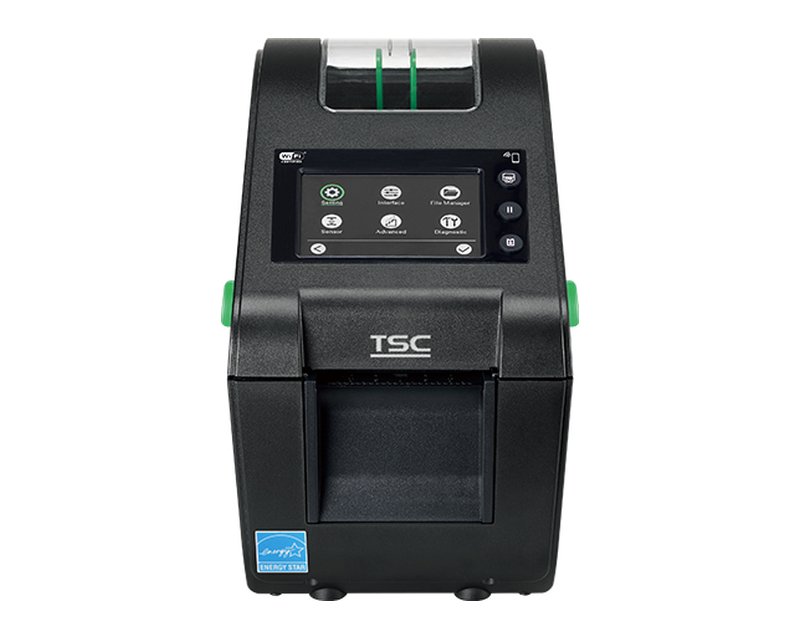

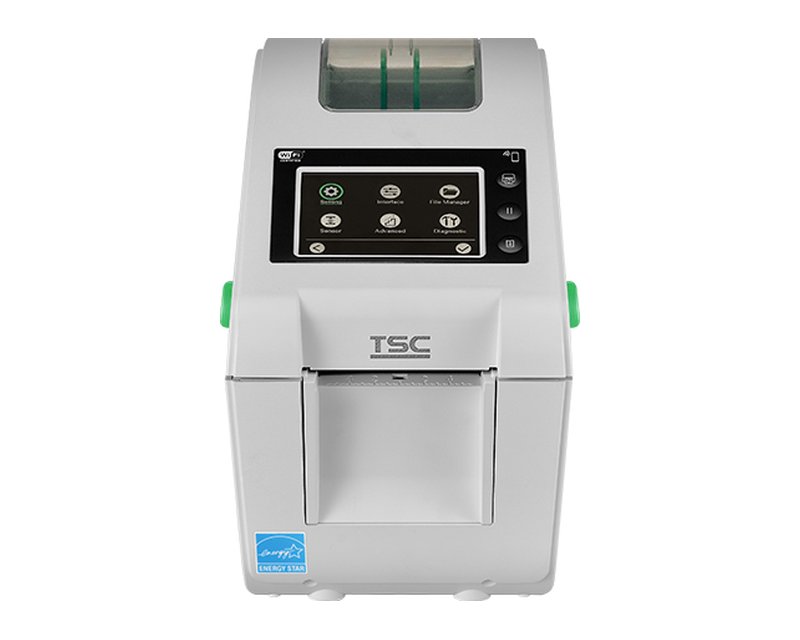

The TSC DH220L is the large-roll version of the 2-inch DH series: it takes rolls up to 165 mm (6.5"), so changes are less frequent. It is built for high-volume wristbands and tickets at events, in hospitals and at entrances, and also prints product and shipping labels. It has more memory than the DH220, and DH220LT versions add a colour touchscreen.

Key points

  • Direct thermal, 54 mm print width, 203 dpi, speed up to 203 mm/s
  • Rolls up to 165 mm outer diameter, core 25.4-38.1 mm; media 10-60 mm wide, including wristbands
  • 256 MB SDRAM and 512 MB Flash; print length up to 25,400 mm
  • USB, USB Host, Ethernet, Wi-Fi, Bluetooth (including MFi) and RS-232; optional guillotine cutter and peeler
  • LED with buttons or colour touchscreen (DH220LT); HC versions; TSPL-EZD; 2.0 kg, 146 x 206 x 264 mm

Specifications

Printing

Print technologyDirect thermal
Print width2"
Print width, mm54 mm (2.13")
Resolution203 dpi
Print speed203 mm/s
Maximum print length25400 mm

Rolls and ribbon

Maximum roll diameter165 mm
Roll core diameter1" - 1.5" (25.4 - 38.1mm)

Platform

Memory256 MB SDRAM; 512 MB Flash
DisplayLED with buttons; Color LCD touchscreen with buttons
Command languagesTSPL-EZD; emulation: TSPL

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, Bluetooth, RS-232
RFID—

Options

Options (cutter, peeler, rewinder)cutter, peeler

Dimensions

Dimensions (L × W × H)146 x 206 x 264 mm
Weight2.0 kg
