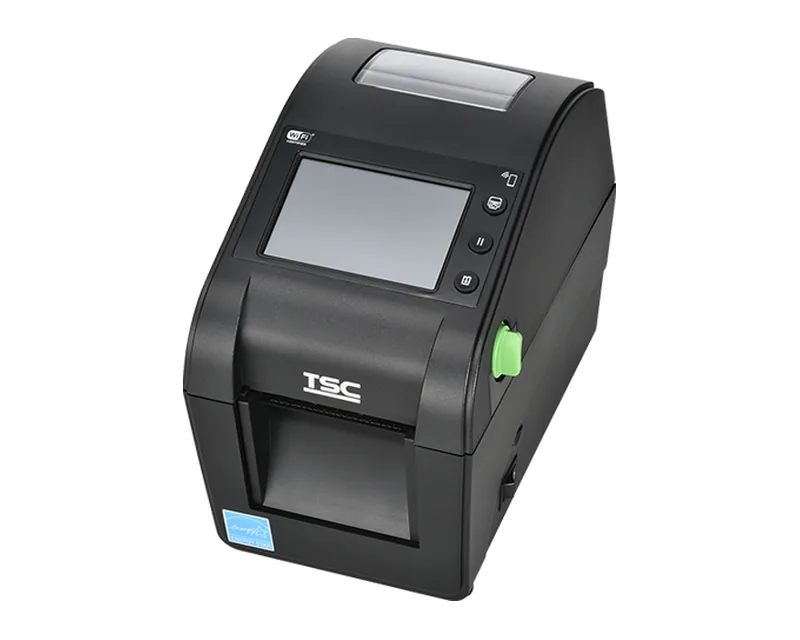

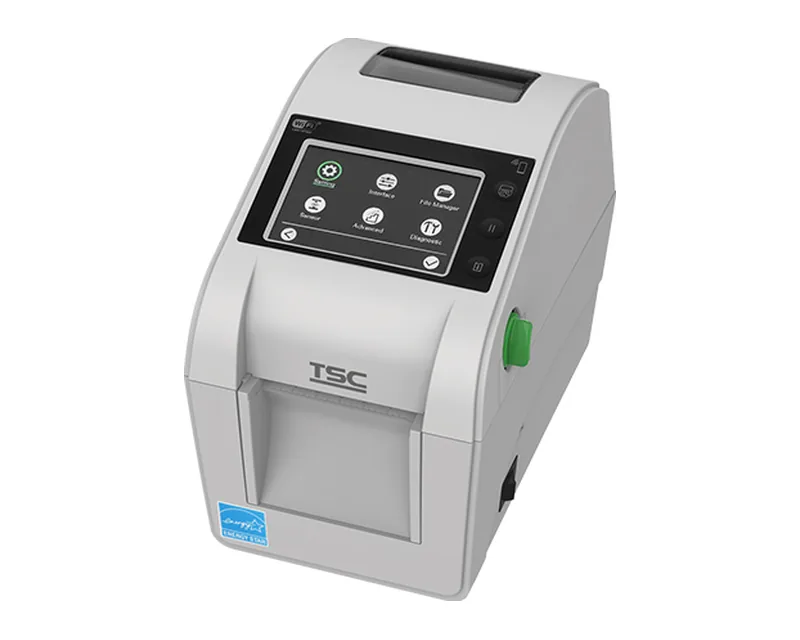

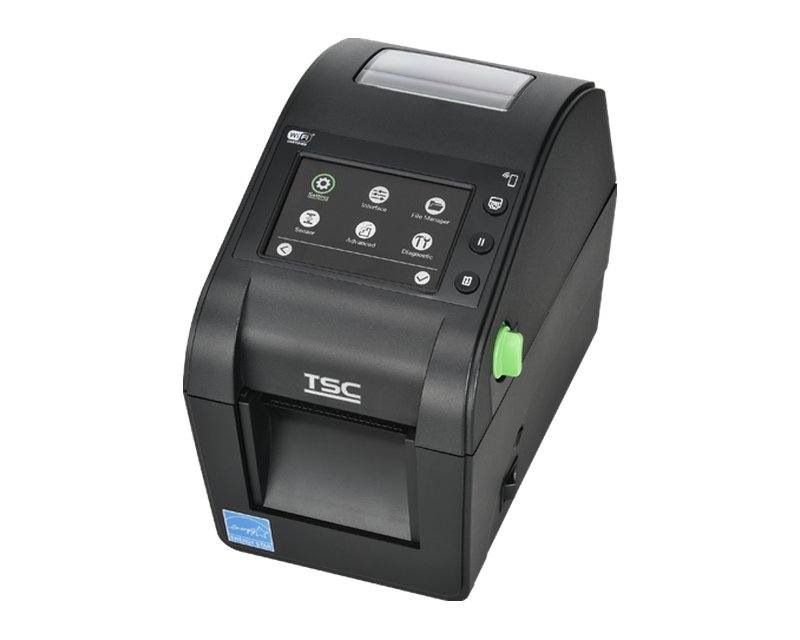

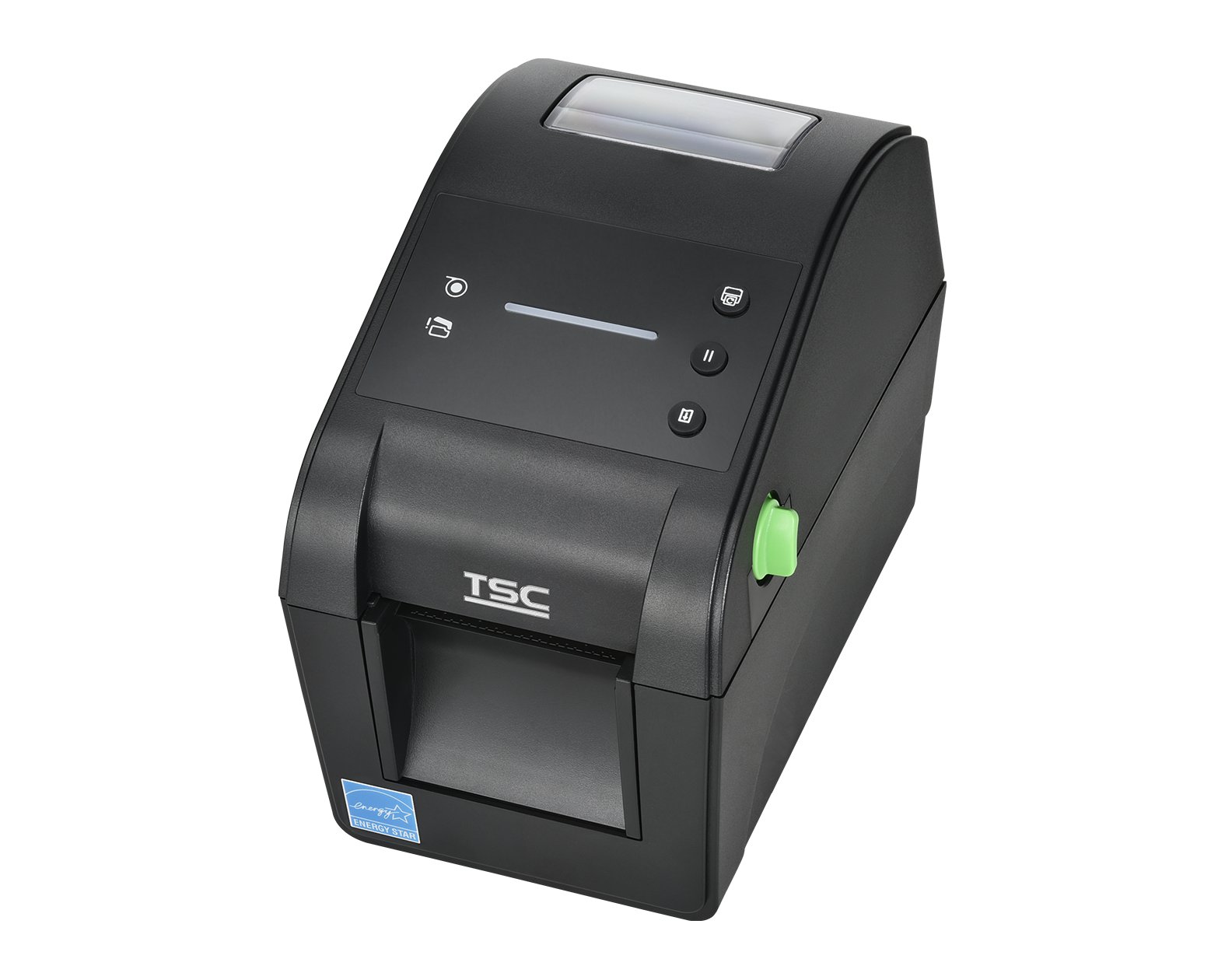

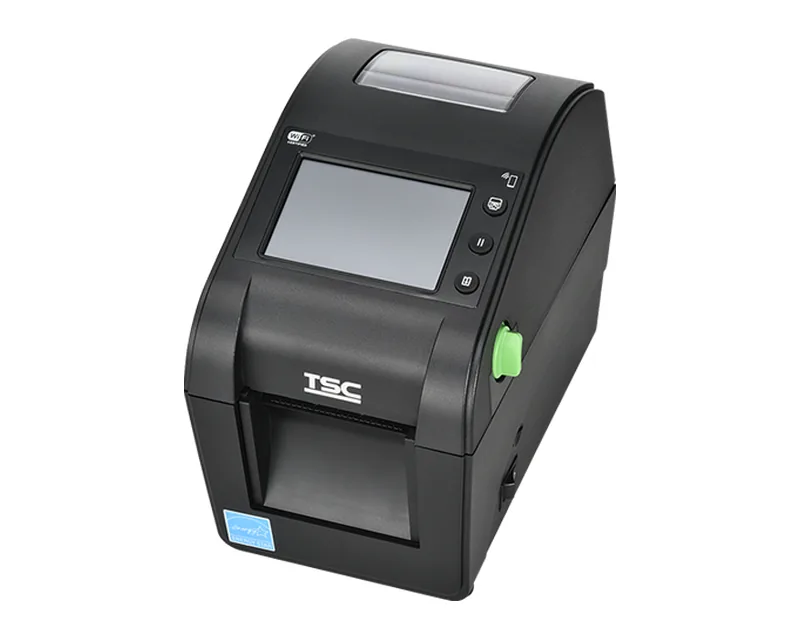

TSC DH320 - 1
  • TSC DH320 - 1
  • TSC DH320 - 2
  • TSC DH320 - 3
  • TSC DH320 - 4
  • TSC DH320 - 5
  • TSC DH320 - 6

TSC

TSC DH320

Compact 2-inch direct-thermal desktop printer at 300 dpi for small labels and fine detail

  • Print technologyDirect thermal
  • Print width2"
  • Resolution300 dpi
Model
DH320
Brand
TSC

The TSC DH320 is a compact 2-inch direct-thermal desktop printer at 300 dpi: 56.9 mm print width, 152 mm/s, Ethernet, Wi-Fi, Bluetooth, RS-232 and USB. For medication, specimen and small labels.

On order

Delivered within one week of payment.

from 14 550 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet (EN) EN

Description

At a glance

The TSC DH320 is the high-resolution version of the DH220: the same compact 2-inch body and the same modules (cutter, peeler, linerless), but at 300 dpi. Fine text and small codes come out sharper, which matters on medication, specimen and small product labels. DH320T and DH320THC versions add a colour touchscreen.

Key points

  • Direct thermal, 56.9 mm print width, 300 dpi, speed up to 152 mm/s
  • USB, USB Host, Ethernet, Wi-Fi, Bluetooth (including MFi) and RS-232; microSD slot up to 512 GB
  • Optional guillotine cutter and peeler; linerless option
  • Rolls up to 127 mm, core 25.4-38.1 mm; media 15-60 mm; print length up to 11,430 mm
  • LED with buttons or colour touchscreen (DH320T/DH320THC); TSPL-EZD; 1.6 kg, 138 x 172 x 210 mm

Specifications

Printing

Print technologyDirect thermal
Print width2"
Print width, mm56.9 mm (2.24")
Resolution300 dpi
Print speed152 mm/s
Maximum print length11430 mm

Rolls and ribbon

Maximum roll diameter127 mm
Roll core diameter1" - 1.5" (25.4 - 38.1mm)

Platform

Memory128 MB SDRAM; 128 MB Flash; microSD card reader; up to 512 GB
DisplayLED with buttons; Color LCD touchscreen with buttons
Command languagesTSPL-EZD; emulation: TSPL

Connectivity and RFID

ConnectivityUSB, Ethernet, Wi-Fi, Bluetooth, RS-232
RFID—

Options

Options (cutter, peeler, rewinder)cutter, peeler

Dimensions

Dimensions (L × W × H)138 x 172 x 210 mm
Weight1.6 kg
