TSC TL340

4-inch desktop printer with 300 dpi and USB, for small, detailed labels

Print technologyDirect thermal, Thermal transfer
Print width4"
Resolution300 dpi

Model: TL340
Brand: TSC

The TSC TL340 is a desktop printer with a 105.6 mm print width, 300 dpi and speeds up to 102 mm/s, connected over USB. For fine labels in logistics, retail and food.

On order

Delivered within one week of payment.

Price on request

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet (EN) EN

Description

At a glance

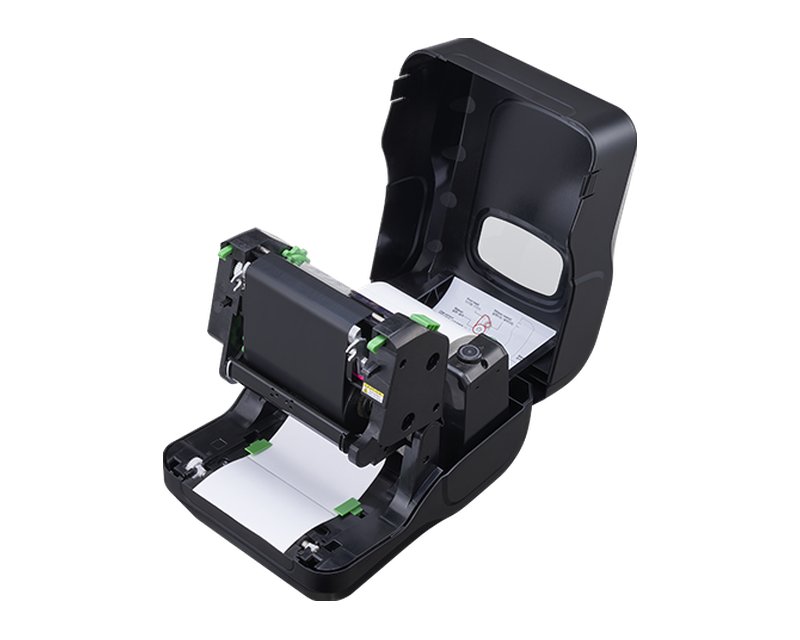

The TSC TL340 is the 300 dpi version of the TL series, suited to small text, dense barcodes and product labels. It is slower than the TL240 (102 mm/s) but prints finer detail. It has USB only and works in direct thermal or thermal transfer, with easy ribbon loading.

Key points

105.6 mm print width, 300 dpi, speed up to 102 mm/s
USB connection; for a network, see the TL341
Media 19-118 mm, maximum label length 11,430 mm
Rolls up to 127 mm outer diameter, 300 m ribbon
Optional cutter; 64 MB DRAM and 16 MB Flash; TSPL-EZD language with TSPL emulation

Specifications

Printing

Print technology	Direct thermal, Thermal transfer
Print width	4"
Print width, mm	105.6 mm (4.16")
Resolution	300 dpi
Print speed	102 mm/s
Maximum print length	11430 mm

Rolls and ribbon

Maximum roll diameter	127 mm
Roll core diameter	1.0" (25.4mm)
Ribbon (length, core, winding)	300 m, width 1.6" - 4.3" (40 - 110mm)

Platform

Memory	64 MB DRAM; 16 MB Flash
Display	LED with buttons
Command languages	TSPL-EZD; emulation: TSPL

Connectivity and RFID

Connectivity	USB
RFID	—

Options

Options (cutter, peeler, rewinder)	cutter

Dimensions

Dimensions (L × W × H)	211 x 164 x 279 mm
Weight	2 kg

Documents

PDFSpec sheet (EN) 0.4 MB · language: EN
